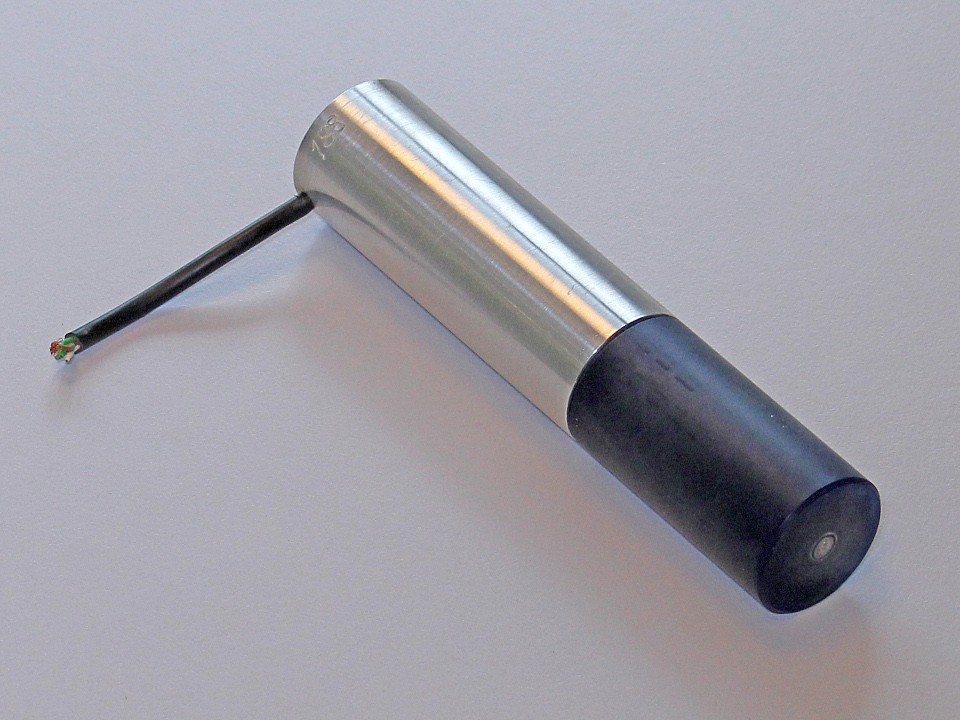

GE 10P

GE 10P

Technical data Dimensions
Power supply: 12 V Ø 32 mm
Supply current: 1 A Length: 150 mm
Output voltage (unloaded): 80 KV
Max. output current: 200 µA
Max. power output: 12 W

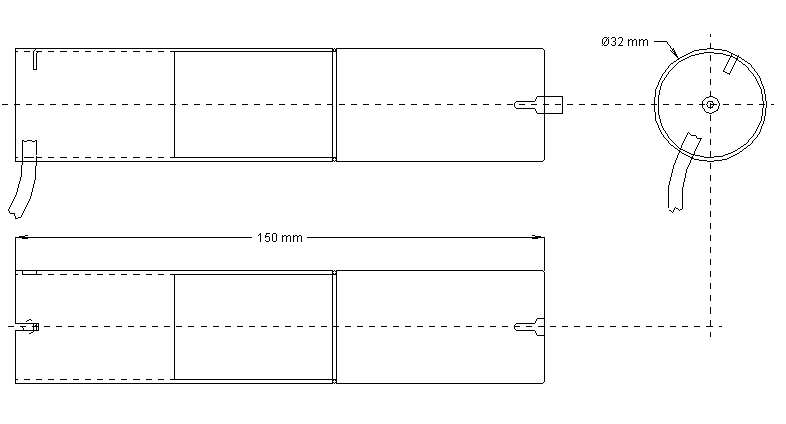

Technical drawing
